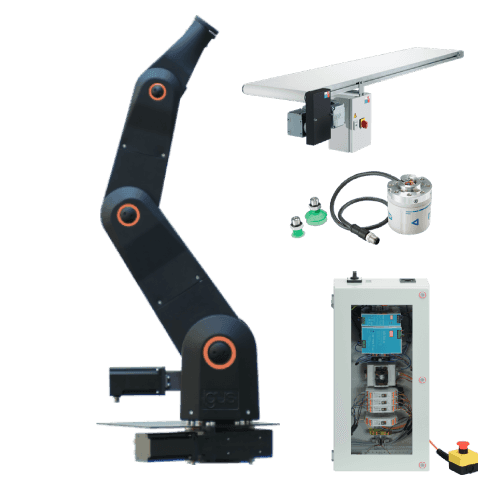

Robolink Education bundle
The combination of industry proximity and very intuitive control via the handheld make the robolink DP-5 so exceptional.
Use cases for the robolink include:
Pick&Place tasks, mobile applications, pickup and delivery services or assembly assistance.
You can teach all of these areas directly with the robolink bundle, without additional purchases.
Highlights
LCA Learning
didaktisches Lernmaterial inklusive
Auf der Seite von igus® finden Sie auf die Roboter zugeschnittene Lerninhalte. Power-Point Präsentationen, Arbeitsblätter, Videos und Seminare helfen dabei, das Wissen über Robotik und Low Cost Automation zu vertiefen.
Die LCA Learning Seite steht Ihnen dabei vollkommen kostenlos und uneingeschränkt zur Verfügung.
Includes igus® Robot Control
Modular control and Software
This set enables you to control the robolink® robot arm. With the corresponding software, you can programme and move the robot via a graphical user interface. Main features:
Modular, control system based on top-hat (DIN) rail, easy to extend
Smooth motion with 1/256 microstepping
Energy saving operation with adaptive current control: Trinamics StallGuard2 and CoolStep Technologies
Intuitive control and programming environment with interactive 3D user interface
Programming commands like Joint, Linear, If-Then-Else, DigitalOut, Loop etc.
Interface to remote computer via TCP/IP
ROS packages are available
Control cabinet
Free Download
Download now and try it out in advance
Download the software now for free. This allows you to familiarize yourself with the user interface and functions even before you buy the components. With the Digital Twin you get an overview of the possibilities of your robot. (System requirements: Windows 10 PC, free USB 2.0 port, Ethernet port, 500 MB free storage)
Components
Robolink | 5 DOF | 790mm | 3kg
by igus®Part No.: RBTX-IGUS-0165Modular Jointed Robot for Flexible Automation
The robolink® DP is a modular jointed robot with 5 axes, up to 790 mm reach, and ±1 mm repeatability. With a payload of 3 kg and up to 7 picks/min, it’s ideal for precise tasks in compact workspaces.
Controlled via igus® Robot Control or Dryve D1 motor controller – supporting Modbus TCP, CANopen, and digital/analog I/Os. Integration is seamless and requires no software installation. Optional accessories include gripper adapters, linear axes, and table mounts.
Recommended for pick & place, inspection automation, light assembly, and education. Perfect for SMEs, labs, and developers seeking a cost-effective and expandable robotics solution.
Schmalz CobotPump | electric vacuum pump for cobots
by J. Schmalz GmbHPart No.: RBTX-SLZ-0032Schmalz ROB-SET ECBPMi – Electric Vacuum Gripper Sets for Cobots
The ROB-SET ECBPMi Series from Schmalz provides ready-to-connect complete solutions for automated handling with collaborative and lightweight robots. Each set is based on the electric vacuum generator CobotPump ECBPMi and includes all components required for quick integration: vacuum generator, flange adapter, suction cup, and connection cable.
Thanks to electric vacuum generation, no compressed air supply is needed, making installation extremely simple. The sets are optimized for popular robot brands such as Universal Robots, FANUC, ABB, Dobot, igus and more. With the Plug & Work principle the optional URCap software, commissioning is intuitive and fast.
Perfect for applications such as pick-and-place, packaging, assembly, and bin-picking, especially for airtight workpieces up to approx. 3 kg.
Belt Conveyor GUF-P 2000 with 250 W for medium-weight parts, optional with control
by Maschinenbau Kitz GmbHPart No.: RBTX-MK-0004The GUF-P 2000 is a belt conveyor with a modular profile design for conveying light and medium-weight goods. It is particularly suitable for transporting packaged and unpackaged piece goods, without any specific requirements regarding the product’s position, orientation or geometry.
The T-slots running along both sides (10 mm slot width) in the conveyor frame allow you to easily integrate the conveyors into existing machine frames or to attach conveyor stands, side rails, sensors and other accessories.
The optional frequency inverter (FI) allows for 4 preset speed levels and serves as the interface with the robot. It is completely installed on a separate control cabinet and wired ready for connection.
A base frame is not included in the scope of delivery. Please contact us if required!
The product can be customized to your needs. Please contact us.
